Floor Machine Brushes J45

Brush for J45 floor scrubber

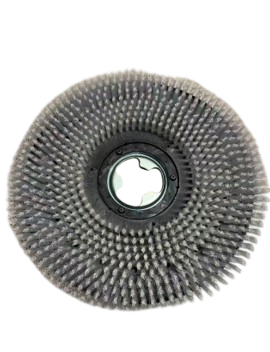

This is the disc brush designed for the J45 floor scrubber. It’s the component that makes contact with the floor: the machine supplies water and cleaning solution, but the bristles do the actual scrubbing.

The brush measures 20 inches (about 508 mm), which provides the machine with a 510 mm cleaning width. The J45 uses one brush at a time.

The brush spins at 180 rpm powered by a 550 W brush motor. The bristles are engineered to withstand this speed and maintain even pressure across the entire disc, ensuring the machine cleans the whole area and not just the edges.

Brushes are consumable parts. When the bristles become short and spread out, cleaning takes longer and the results become uneven. That’s the right time to replace the brush—don’t wait until it’s completely worn out.

Applications for the J45 brush

The J45 brush is used in industrial and commercial settings where mechanical floor cleaning is needed. Common locations include warehouses, manufacturing floors, logistics facilities, retail spaces, healthcare centers, and schools. This brush is made for daily cleaning of hard surfaces that see heavy use and frequent dirt.

Technical details

What the brush determines

• This is what does the cleaning. Water and suction alone won’t remove dirt. The bristles do the work, and when the brush is worn, you’ll see streaks and need to go over the area again.
• Full 510 mm coverage. The 20-inch disc matches the machine’s cleaning width, so each pass cleans the entire strip.
• Consistent pressure. A flat, level brush applies even force across the floor, while a worn brush tilts and only cleans in a ring.
• Designed for this model. The coupling and size are made for the J45, so you can install it in under a minute with no adapters needed.
• Smoother and quieter operation. A balanced brush keeps the chassis steady, while an unbalanced one puts extra wear on the motor and bearings.
• Regular replacement part. Brushes are changed on a maintenance schedule, just like squeegee blades, before cleaning quality drops.

Included with your order

• Disc brush for the J45 floor machine
• 20-inch diameter, approximately 508 mm
• One brush per floor machine
• Operating speed: 180 rpm
• For a 510 mm cleaning width
• Compatible with the J45 brush disc coupling
• Wear part, tool-free replacement
• Suitable for concrete, epoxy, tile, and vinyl floors

How to change the brush

1. Park the floor machine on a flat surface and lift the brush disc off the floor.
2. Turn the power on and briefly press the brush button: the disc will rotate and release the brush from the coupling.
3. Turn the machine off and remove the old brush from under the chassis.
4. Hold the new brush level under the coupling, align the drive lugs, and push it up until it clicks into place.
5. Lower the disc and test the machine on a small area to make sure the pressure is even and the chassis runs smoothly.

Care and replacement guidelines

• Keep it level. The brush must be horizontal when installed, and the brush motor must be off. If the disc is mounted at an angle, it won’t seat properly and could damage the coupling.
• Verify height adjustment. The brush disc can be adjusted front to back. After installing a new brush, make sure the disc sits parallel to the floor.
• Rinse after each shift. Dirt and cleaning solution will dry in the bristles and make them stiff. Rinse the brush thoroughly and let it dry off the floor.
• Do not store with bristles down. The bristles will become misshapen and the brush will not clean evenly after that.
• Replace when bristles wear down. When the bristles are worn, they spread out and lose cleaning pressure in the center, causing you to go over the same area twice.
• Choose the right brush for your floor. If the brush is too stiff, it will polish the surface coating; if too soft, it will not remove embedded dirt.

Before You Buy

You’ll find the price on this page. Since you select a brush based on both your machine and your floor, please confirm these details before purchasing:

• Your machine. This brush is made for the J45. The J25, J85, and J115 each require their own size. Order by machine model, not just by diameter.
• Quantity needed. The J45 uses one brush at a time. It’s smart to keep a spare on hand so you can swap out a worn brush right away.
• Brush or pad option. For polishing or for very smooth floors, you can use a pad holder with a cleaning pad instead of a brush.
• Your floor type. Concrete, epoxy, tile, and vinyl are all options. Let us know your floor type so we can match the bristle stiffness.
• Usage frequency. Track the hours your machine operates. For daily industrial cleaning, plan to replace the brush regularly, not just when it fails.
• Collection. This is a small part, packed in a 15 × 15 × 15 cm box. Goods are collected EXW and prices do not include VAT.
