Dual Head Inkjet Printer ST-210S-H2

Dual Head Inkjet Printer ST-210S-H2 for Packaging

The Dual Head Inkjet Printer ST-210S-H2 is a packaging inkjet printer equipped with two print heads. When combined, they create a single print area up to 25.4 mm high. Used separately, each head can print on two different spots or produce two parallel lines on your packaging.

Each print head delivers up to 600 × 600 DPI resolution, and the printer can operate at line speeds up to 406 meters per minute at 90 DPI. The print heads operate at a distance of 1 to 5 mm from the product, with no additional components in between.

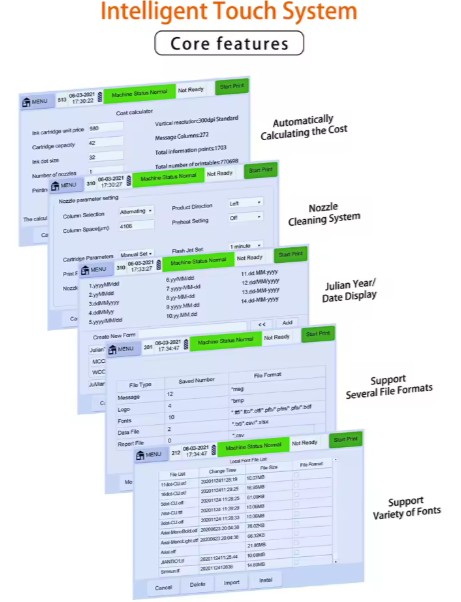

The 7-inch color touchscreen runs on embedded Linux and supports over 40 languages. The system manages more than twenty separate counters and prints text, dates, shift codes, serial numbers, barcodes, QR codes, and database-driven fields.

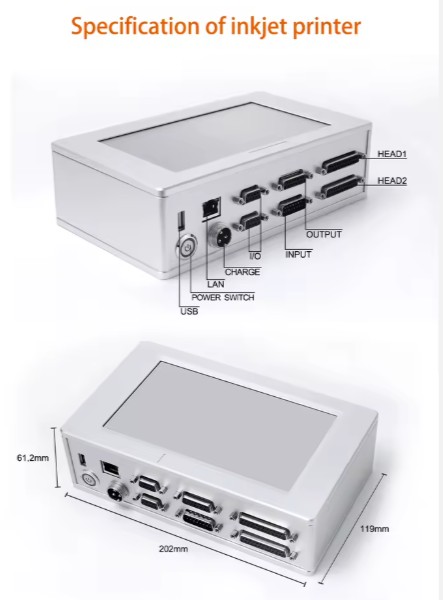

The enclosure is made from aviation-grade aluminum. The controller measures 202 × 119 × 61.2 mm, and each print head is 112 × 79 × 103 mm. Power is supplied by a 100–240 V adapter. The printer is certified with RoHS, CE, and FCC marks.

Dual Head Inkjet Printer ST-210S-H2 in Manufacturing and Logistics

The Dual Head Inkjet Printer ST-210S-H2 is used in manufacturing, logistics, food and beverage, pharmaceuticals, consumer goods, automotive, and medical device sectors. This printer integrates into automated production lines where products move on conveyors and require variable data such as batch numbers, expiration dates, barcodes, or traceability information.

Common applications include serialization, batch coding, QR code traceability, and compliance marking. This printer is selected for lines that demand high speed and frequent product changes.

Technical Data

Advantages of the second print head

• Double the print height. With both heads combined, you get a 25.4 mm print area—ideal for address blocks, large batch codes, or codes visible to forklift operators.
• Or print in two spots at once. Each head can print separately, so you can mark both the top and side of a box in a single pass.
• 600 DPI on both heads. Small DataMatrix codes, crisp text, and logos remain clear, even on coated cartons.
• Keeps pace with your line. Prints at 406 m/min at 90 DPI, or 60 m/min at full 600 DPI resolution.
• Network connectivity included. Features USB, RS232, and TCP/IP ports, so you can send print data directly from your order management system.
• Single controller for both heads. Both print heads are managed from one controller and one display, making setup and maintenance simple.

Included features

• Industrial thermal inkjet printer, TIJ 2.5 nozzle, model T210E
• Two print heads, can be used together or separately
• Maximum print height: 25.4 mm combined, 12.7 mm per head
• Print resolution up to 600 × 600 DPI
• Prints up to 406 m/min at 90 DPI
• Printing distance: 1–5 mm
• Over 20 separate counters
• 42 ml ink cartridge with RFID chip for ink level tracking
• 7-inch color industrial touchscreen, embedded Linux system, supports over 40 languages
• Equipped with network port, USB, RS232, photo eye, and encoder connections
• Power supply: 100–240 V AC input, 30 V / 4 A DC output
• Durable aviation-grade aluminum housing, operates in 0–45 °C environments
• RoHS, CE, and FCC certified, includes a 12-month warranty

How the printer operates on your line

1. Install the controller next to your conveyor and position both print heads above it, 1 to 5 mm from the product, then ground the equipment.
2. Choose whether to print a single tall code or two separate marks, and set this up on the touch screen.
3. Place the photo eye where packages are detected, and if your line speed varies, add the encoder.
4. Enter your print text on the screen or send it over the network, then adjust print height and resolution.
5. Start your line: each package passing the photo eye is printed as it moves by.

Settings and maintenance

• Single block or two marks. When both heads are joined, you get a 25.4 mm print; when used separately, you can print in two locations. Set this first, as it determines head placement.
• Resolution and speed. Print at up to 406 m/min at 90 DPI, or as slow as 60 m/min at 600 DPI. Use the lowest resolution that still gives a scannable code.
• Distance. Keep the heads 1 to 5 mm from the surface, and set the guide plate 0.5 to 2.5 mm from the product to protect the nozzles.
• Mounting. The bracket should be installed where there is no vibration, and both heads must be at the same distance to ensure even print quality.
• Cartridges. Each head uses its own cartridge. Always insert or remove cartridges at an angle, and never remove a cartridge while printing is in progress.
• Power and dust. Use a dedicated outlet, consider a UPS, and keep the printer in a dust-free area.

Before you buy

Pricing is shown on this page. When selecting a printer for packaging, match the model to your code and production line. Please review these points before purchasing:

• Code height. Both heads together print up to 25.4 mm. If you only need 12.7 mm, the ST-210S-H1 with a single head is a lower-cost option.
• One location or two. The heads can print on both the top and side of a package, which affects how you mount them.
• Line speed. Maximum speed is 406 m/min at 90 DPI, or up to 60 m/min at 600 DPI.
• Surface. Suitable for carton, plastic, metal, glass, cable, stone, electronic components, and auto parts. Select ink based on your material.
• Data. Specify if your print data comes from the screen or your system: the printer supports network, USB, and RS232 input.
• Ink. The dual-head design uses two cartridges, so be sure to include both in your ink cost calculations.
