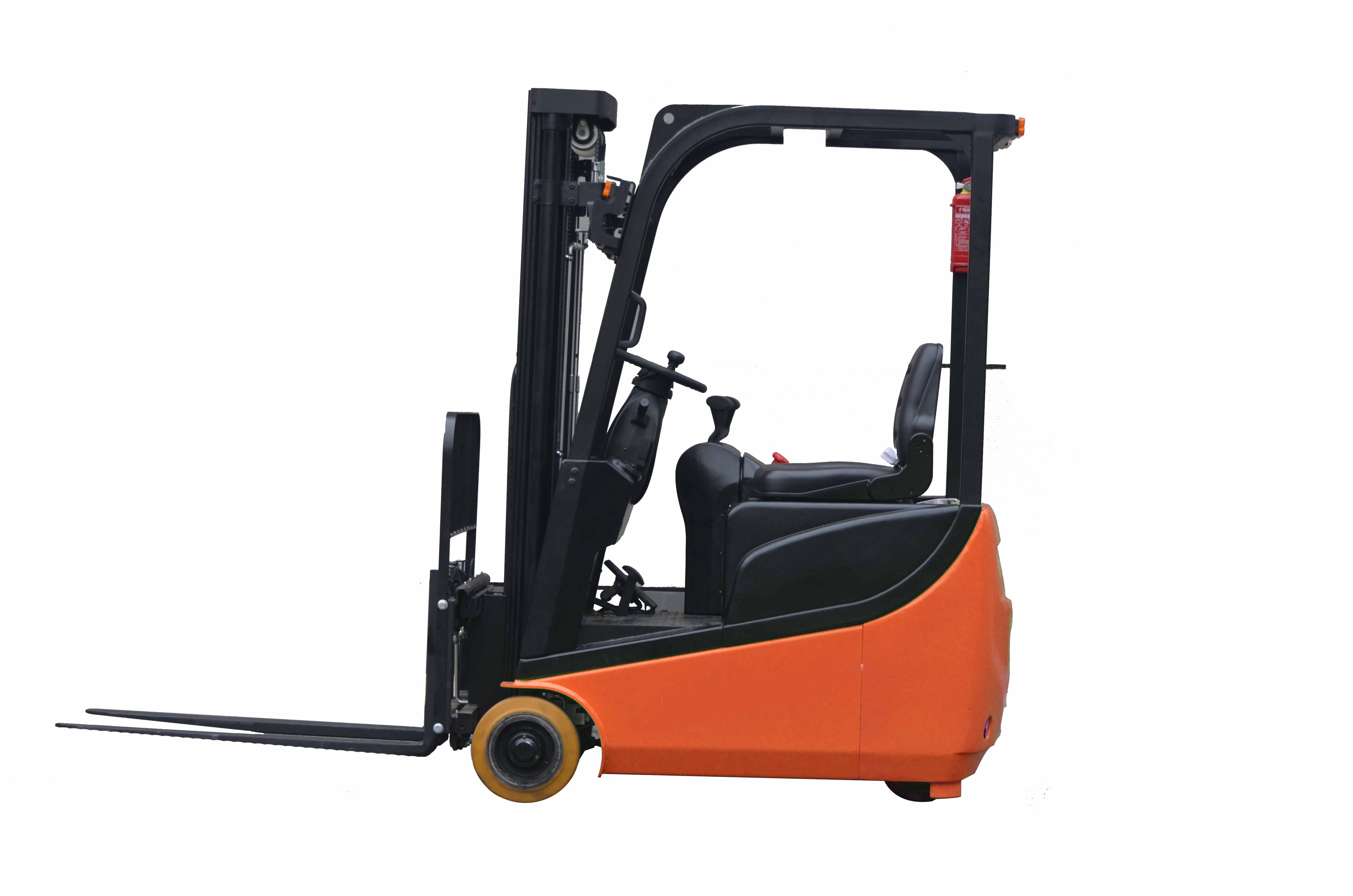

SMITH Electric Stacker Truck | 3-Wheel Electric Forklift 1500kg, 450cm

SMITH Electric Forklift | 3-Wheel Electric Lift Truck 1500kg, 450cm

SMITH Electric Forklift | 3-Wheel Electric Lift Truck is a versatile forklift recognized for its long run times, fast travel speeds, and efficient lift and lower rates. The Three-Wheel Electric Forklift is designed for operator comfort and easy maintenance, making it a valuable choice for a range of applications, especially in tight aisles and compact spaces. It features an advanced ring rod lifting system and a Curtis AC controller, along with a high-quality motor, battery, and hydraulic pump motor. The 3-Wheel Electric Lift Truck is built using advanced manufacturing methods and quality materials in line with industry standards. Each unit is thoroughly inspected by our experienced quality team to ensure it meets our standards. Goods are collected EXW and all prices exclude VAT. Key features include:

• maximum visibility
• nested rail profiles
• lift cylinders with hydraulic damping
• quiet hydraulic lift system
• minimized vibration
• tilted load rollers with adjustable settings
• balanced load distribution
• reduced emissions
• and attractive design

This electric forklift is ideal for use on smooth warehouse floors as well as in outdoor areas. The 3-Wheel Electric Lift Truck is designed for lifting heavy items and pallets up to a height of 4500 mm (at its maximum lift height of 4500 mm, it can handle up to 700 kg) and moving them to a different spot. This electric forklift truck offers a cost-effective and robust solution for your material handling needs. The 3-Wheel Electric Lift Truck is versatile for lifting a range of objects and pallets, and it can be tailored to your requirements. It features two separate motors: one for driving and one for lifting. The drive motor delivers 24V/2.5 kW of power, while the lifting motor provides 24V/4.5 kW. The forklift is equipped with a 24V/400 Ah high-capacity battery and a charger. The battery’s high capacity allows for extended operation without needing to recharge. Recharging is quick, so downtime is minimized. With its excellent maneuverability and user-friendly controls, this 3-Wheel Electric Lift Truck makes it easy to lift pallets or heavy items up to 4500mm high and relocate them as needed. The SMITH 3-Wheel Electric Lift Truck is engineered for easy operation and efficient use of space. This machine comes with a 12-month warranty; service is available only in Slovenia.

3-Wheel Electric Forklift Specifications

Highlights of the 3-Wheel Electric Lift Truck

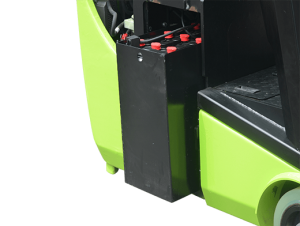

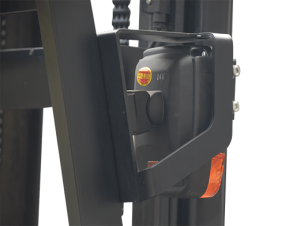

Side-pull battery system. This design allows for fast and simple battery changes, supporting continuous use and increasing productivity.	The updated chimney structure is both attractive and durable, offering protection for the headlamps and allowing for easy maintenance access.

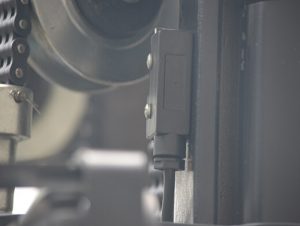

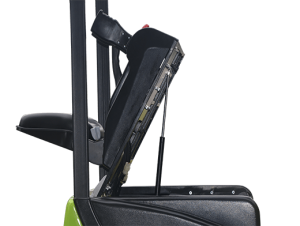

Opening the snap button lets you fully lift the cover. Operators can easily inspect, test, and service the drive assembly, pump units, controller, batteries, and other key electrical parts.	Lift height limiter. When the forks reach their highest point, the system automatically stops lifting power for a smooth halt. This feature helps conserve energy, reduce risk, and extend the life of the hydraulic system and its components.

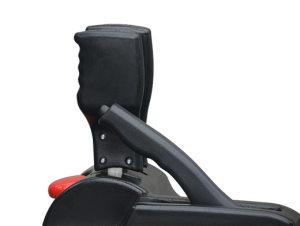

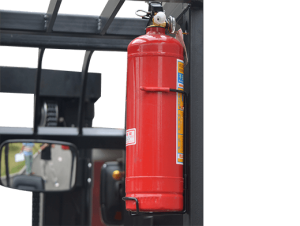

A fire extinguisher bracket is mounted at the rear of the overhead guard, positioned for easy access. This encourages users to keep a fire extinguisher handy and promotes fire safety awareness to help protect people and property.	The hand brake and handle are located on the right side, following ergonomic standards. This setup lessens operator fatigue and enhances comfort during use.

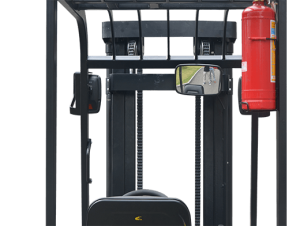

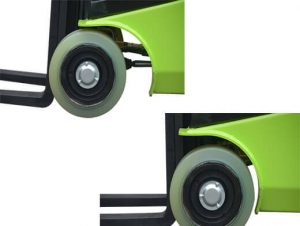

The wide-view mast and well-placed dual cylinders give the operator a clear line of sight, helping to boost both efficiency and safety during operation.	Adjustable wheelbase design. Shifting the front axle changes the wheelbase length. Extending the wheelbase increases the overall length for safer loading, better traction, and smoother driving. Retracting it shortens the vehicle, making it easier to maneuver in tight spaces.

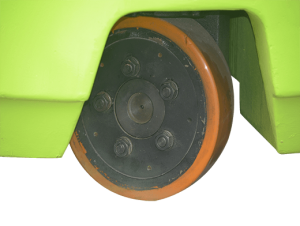

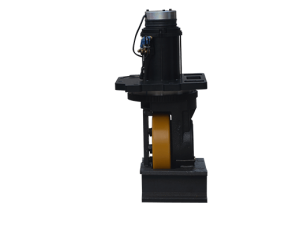

Rear wheel drive design uses less current, reduces energy loss, and extends battery run time compared to dual front-wheel drive. The rear wheel handles both driving and steering, resulting in a tighter turning radius.	State-of-the-art vertical AC drive system. The motor delivers more power and higher braking torque, improving acceleration and gradeability, so the forklift performs smoothly on uneven surfaces and inclines.

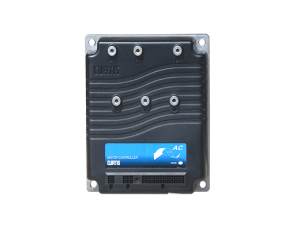

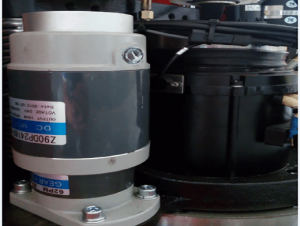

The high-frequency MOSFET integrated AC controller allows for precise speed adjustment and flexibility. The motor and controller work together to support regenerative braking, reverse braking, and anti-slip features for ramps.	All models come equipped with Electric Power Steering (EPS), making handle control easy and comfortable while greatly reducing operator effort. EPS provides light steering at low speeds and stable control at higher speeds, resulting in smarter, more precise turns.

Additional Features of Electric Forklift

• The triplex mast comes standard with a full free lift of 1109 mm, allowing the forks to rise 1109 mm before the mast itself extends. This feature is especially helpful when operating inside containers or under low doorways.
• High-lift speed limiter. When the mast is raised above 300 mm, the travel speed automatically decreases to enhance operational safety.
• Audible reverse alarm. The forklift emits a clear and steady sound when moving in reverse, alerting personnel in the surrounding work area.
• The steering wheel adjusts vertically, the seat slides forward and backward, and the backrest reclines. Each feature is designed with ergonomics in mind to accommodate different operator preferences and provide optimal working comfort.
• Superior cooling performance. The main box is equipped with two fans—one for air intake and one for exhaust. The controller is also treated with a cooling gel. These combined features help lower the operating temperature of the controller, drive units, pump station, and other electrical parts, supporting system reliability.
• The circular steering design allows the forklift to rotate 360 degrees on the spot, reducing its turning radius. This makes it well-suited for use in confined or narrow work areas.

What is the cost of the SMITH 3-Wheel Electric Lift Truck?

3-Wheel Electric Lift Truck SMITH stands out as one of the most affordable electric forklifts available. The electric forklift price does not compromise on quality. Even with its competitive pricing, the 3-Wheel Electric Lift Truck is constructed from premium materials and incorporates the latest advancements in lifting and drive technology. The price for the electric forklift is shown above. The 3-Wheel Electric Lift Truck includes a 12-month warranty and is supplied with a 24V/400 Ah high-capacity battery and charger. Goods are collected EXW and prices do not include VAT.

How do I operate the SMITH 3-Wheel Electric Forklift?

1. Insert the key into the ignition, turn it to the right, and the emergency power safety switch will reset. Then gently activate the control circuit.
2. Raise the forks approximately 10 cm off the ground.
3. Start to release the parking brake system.
4. Press the switch in the direction you wish to move, either forward or backward, as needed.
5. Gradually press the accelerator pedal until you reach the desired speed.
6. If you encounter any issues while operating the electric forklift and need to stop immediately, press the red emergency power switch.
7. When turning the forklift, reduce speed whenever possible.
8. The forklift’s maximum gradeability is 10%. Operators should assess the slope before climbing and fully depress the accelerator pedal to achieve the best climbing performance.
9. When descending a slope, release the accelerator pedal to engage reverse braking current. If this does not control the speed adequately, also apply the brake pedal to maintain safety.
10. When parking, release the accelerator pedal until the forklift comes to a complete stop. Lower the forks to their lowest position, keep your hands inside the cab, press the safety switch, and remove the key.

The control panel on the 3-Wheel Electric forklift features a power level indicator, mast lift slowdown, and a working hours display. If the battery charge drops too low, the power meter will automatically disconnect the pump motor’s control circuit. In this situation, the forklift can still drive but cannot lift the forks, indicating it’s time to recharge. Hydraulic power is supplied by a motor-driven gear pump. The electric forklift is equipped with two lift cylinders and a tilt cylinder for mast tilting functions.
