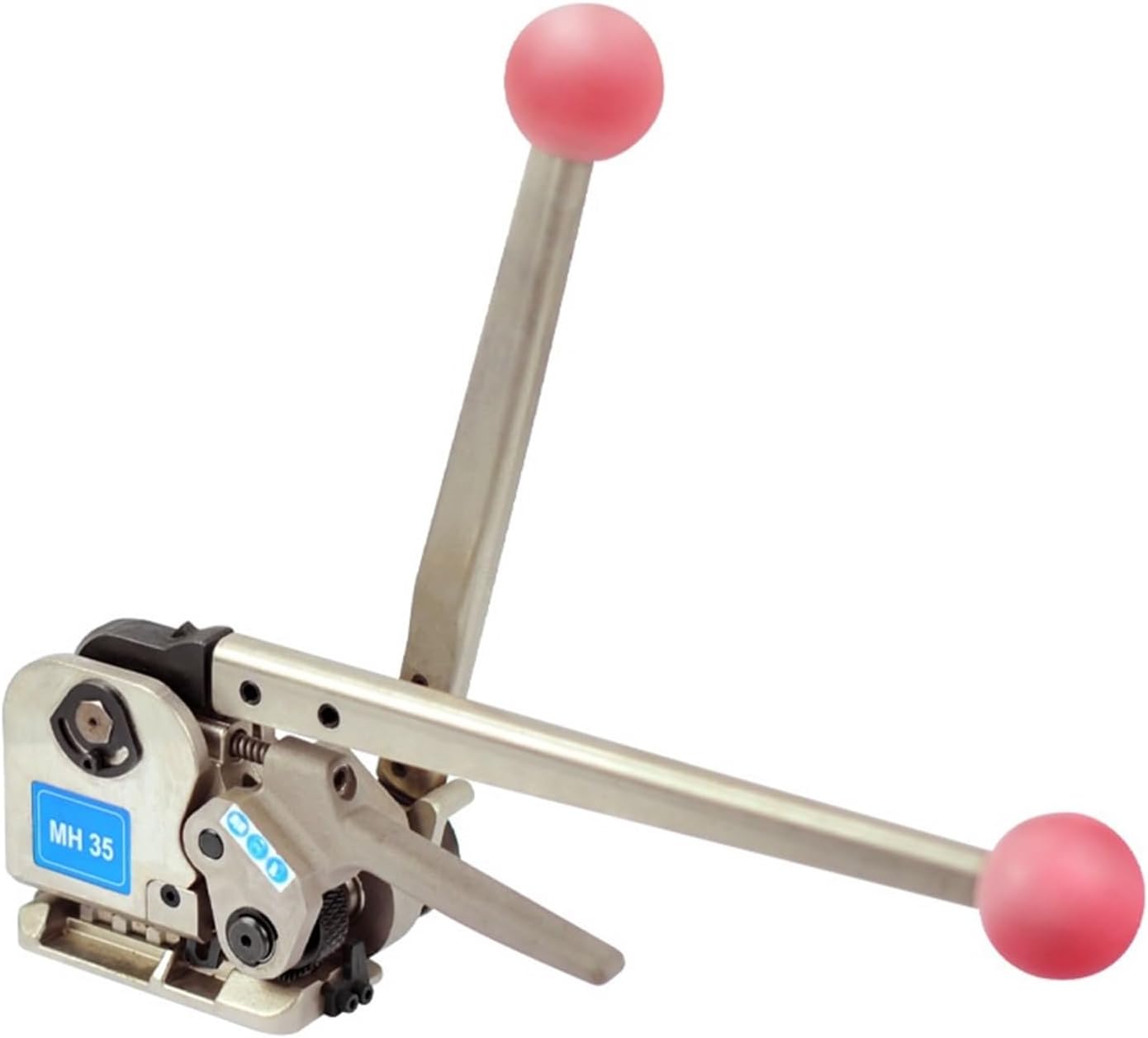

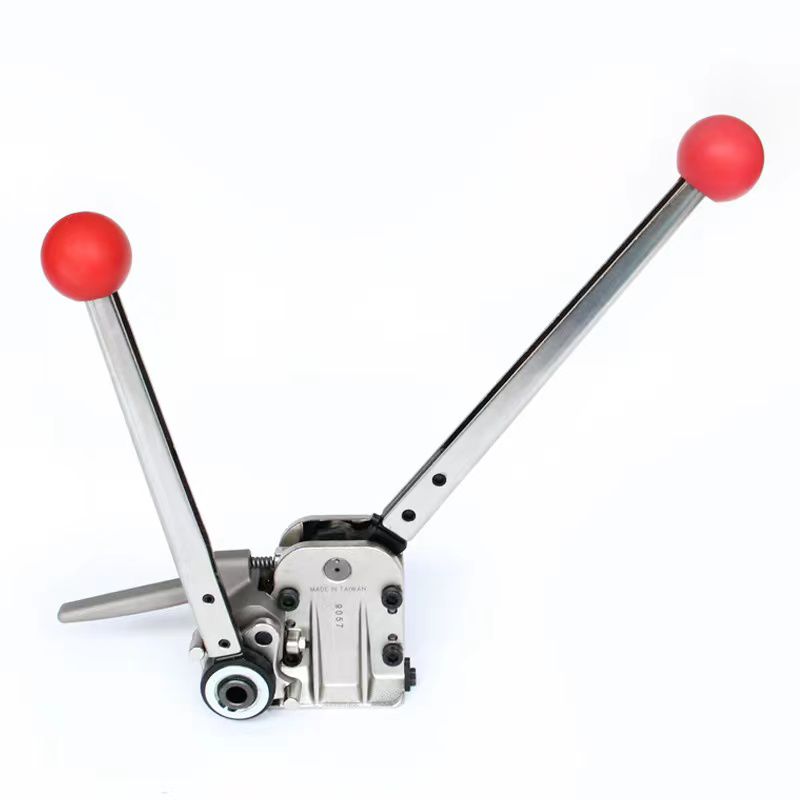

Heavy Duty Sealless Strapping Tool A4 for 25-32mm Steel Strap – Buckle-Free

Heavy Duty Sealless Strapping Tool A4 for Steel Strap

The A4 is a sealless steel strapping tool that tensions steel strap and secures the ends by punching them together, eliminating the need for separate seals.

Compatible with steel strap 25 to 32 mm wide and 0.55–0.75 mm thick, the tool applies tension up to 8000 N.

The joint retains 80–85% of the strap’s original strength. Use the tension lever to tighten the strap, then seal it in one step with the handle.

This tool weighs 4.2 kg and measures 40 × 10 × 33 cm. It is fully manual, requiring no air supply or battery.

Heavy Duty Sealless Strapping Tool A4: Common Applications

The A4 is widely used in logistics, warehousing, and manufacturing to secure heavy loads. Typical uses include bundling steel beams, pipes, lumber, machinery, and other large or dense items for storage or transport. It’s ideal for settings that require high tension and a reliable joint, such as shipping areas, production floors, and distribution centers.

This strapping tool is a popular choice for repetitive strapping work in inventory and shipping operations. Its compact design makes it easy to use in confined spaces, including busy workstations and narrow warehouse aisles.

Technical Data

How to use the A4 strapping tool: operator steps and workflow

Operators should check that the strap is lined up correctly and fully inserted into the strapping tool before applying tension. Consistent positioning helps ensure strong joints and reduces the risk of jams. Since the tool is manually operated, users can control both tension and sealing, making it easy to adjust for different package sizes and shapes.

What the sealless strapping tool does

• No seals required. The strap is locked without separate seals, so there’s nothing extra to keep in stock or replace.
• Durable joint. Delivers 80–85% of the strap’s original strength.
• High tension capability. Applies up to approximately 8000 N, suitable for heavy-duty loads like steel, machinery, or lumber.
• All-in-one tool. Both tensioning and sealing are handled by one tool: use the lever for tension and the handle to seal the joint.
• Portable operation. Manual use—no need for air, batteries, or power cords.
• Adjusts to your strap. Set the width and thickness directly on the strapping tool.

Included features

• Sealless joint, no separate seals needed
• For steel strap 25–32 mm wide
• Handles strap thickness from 0.55 to 0.75 mm
• Tension force up to about 8000 N
• Joint holds 80–85% of strap strength
• Manual operation, with tension lever and sealing handle
• Weight: 4.2 kg, size: 40 × 10 × 33 cm

How to close the strap

1. Wrap the steel strap around your package and hold the end securely with your left hand.
2. Insert the strap into the strapping tool.
3. Move the tension lever back and forth until the strap is tight.
4. Push the sealing handle forward to make the joint, then return it to the starting position.
5. Lift the handle to remove the tool from the strap.

Adjustment and safety information

• Strap width. Designed for steel strap 25–32 mm wide; set the width using the strap stop and guide on the tool.
• Strap thickness. Adjust by loosening the screw and rotating the adjustment plate on the side of the strapping tool.
• Steel only. This strapping tool is designed for steel strap only; do not use it with plastic strap.
• Protection. Always wear eye, face, and cut-resistant hand protection.
• Stand aside. Never stand directly in line with a tensioned strap, as it may snap.
• Cutting the strap. Hold the top section and keep clear: the lower end can spring forward.

Heavy Duty Sealless Strapping Tool A4: choosing the right tool and avoiding errors

Frequent errors include not setting the tool for the correct strap size, which can weaken the joint, and neglecting tool maintenance, which can cause damage or failure. Always operate the strapping tool on a stable surface and do not force the levers past their intended range.

Before you buy

Prices are listed on this page. Please review the following before purchasing:

• Your strap. Steel strap, 25 to 32 mm wide and 0.55 to 0.75 mm thick.
• Your loads. Suitable for heavy loads requiring up to approximately 8000 N of tension.
• No seals. The strapping tool creates a seal directly in the strap, so you do not need to order separate seals.
• Collection. Packed in a box measuring 54 × 16 × 23.5 cm, weight 5 kg. Goods are collected EXW and prices do not include VAT.
