SMITH AS-X6 Aerial Work Platform, 5.8 m Max Platform Height, 7.8 m Max Working Height, 230 kg Load Capacity

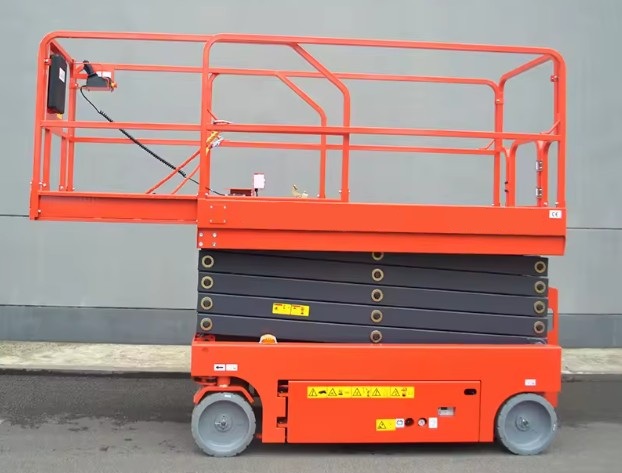

SMITH AS-X6 Scissor Lift

The SMITH AS-X6 Scissor Lift is a self-propelled aerial platform engineered for safe and efficient lifting of personnel and tools in commercial and industrial settings. This model delivers a maximum working height of 7.8 meters and a platform height reaching 5.8 meters, making it ideal for tasks such as indoor maintenance, installation, and construction. With a rated load capacity of 230 kg, it accommodates two users at once. Its compact footprint—1.84 m long as well as 0.76 m wide—allows for easy navigation through tight aisles and restricted areas. The sturdy build and dual front-wheel drive system provide reliable and smooth travel on flat industrial floors.

The platform comes with an automatic braking system, emergency stop device, intelligent danger alarm, plus overload protection, all working together to improve operator safety. The Scissor Lift runs on a 24V DC electrical system powered by six 4V/200Ah batteries, and is equipped with a 3.3 kW drive motor delivering reliable performance for both lifting and driving. With a gradeability of 25% and a minimum turning radius of 1.55 meters, this model provides accurate maneuvering in tight spaces. The AS-X6 is a professional-grade lift designed to meet EN280 as well as CE safety standards, so it meets European workplace safety requirements.

FAQ for SMITH AS-X6 Scissor Lift

1. What is the maximum working height for the Scissor Lift?
   The SMITH AS-X6 Scissor Lift delivers a maximum working height of 7.8 meters, making it suitable for indoor maintenance, installation, and warehouse applications.
2. What is the safe load capacity for the Scissor Lift?
   The lift is rated for a total load capacity of 230 kg (including users, tools, and materials), with up to 120 kg permitted on the extension platform.
3. What type of power does the Scissor Lift use?
   The Scissor Lift operates on a 24V DC battery system made up of six 4V/200Ah maintenance-free batteries, providing quiet, emission-free use.
4. Does the Scissor Lift meet European safety standards?
   Yes, the SMITH AS-X6 is built to comply with EN280 as well as CE standards, meeting all key safety and operational requirements for the EU market.
5. Is the Scissor Lift suitable for outdoor use?
   The SMITH AS-X6 is designed strictly for indoor operation on stable, level flooring. The manufacturer does not allow outdoor use.
6. What maintenance does the Scissor Lift require?
   Regular upkeep involves monitoring the battery charge status, inspecting the condition of hydraulic oil, and verifying brake performance. An automatic fault detection system is included to help with service checks.

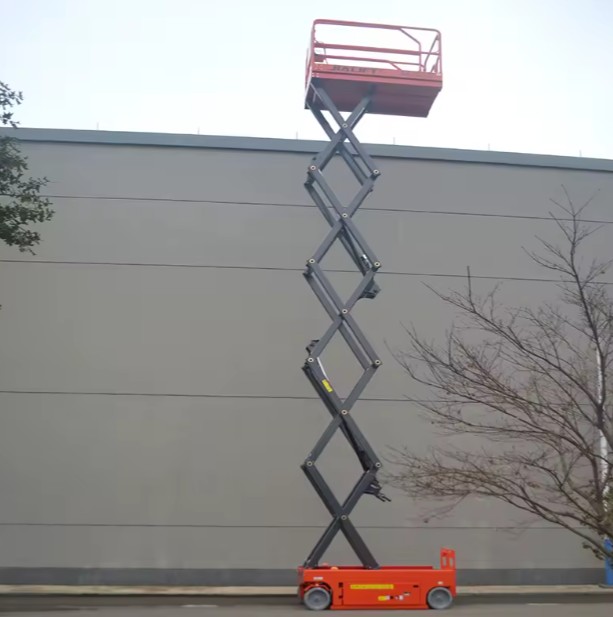

7. How quickly does the Scissor Lift reach its maximum height?
   The Scissor Lift raises to its full height in about 18 seconds and lowers in 28 seconds, supporting efficient maintenance tasks.
8. What safety features are built into the Scissor Lift?
   The lift is equipped with automatic pothole protection system, emergency stop buttons, tilt and overload warning systems, and an emergency lowering function for safe descent.
9. Is the Scissor Lift convenient to move and store?
   Yes. Its compact footprint of 1.84 m × 0.76 m as well as collapsible guardrails allow it to fit through standard doors and be stored in tight areas. Forklift pockets are provided for easy handling.
10. What warranty and support are included?
    The SMITH AS-X6 Scissor Lift comes with a one-year warranty against manufacturing faults. Technical assistance and replacement parts are available from authorized service locations within the EU.

SMITH AS-X6 Scissor Lift Technical Details

ROI for SMITH AS-X6 Scissor Lift

The SMITH AS-X6 Scissor Lift offers a clear return on investment by boosting productivity, improving safety, and minimizing downtime. Its all-electric operation removes the need for hydraulic towing or manual lifting, which helps lower labor expenses and streamlines workflow. With quick lift and lower times of 18 to 28 seconds, technicians can perform several lift cycles per hour, greatly enhancing efficiency. Its compact, self-driving design makes it easy to move between work areas without outside assistance.

The robust battery system allows for long run times between charges, supporting uninterrupted use during a typical shift. Built-in features like fault diagnostics, automatic brake release, plus overload detection help cut maintenance costs and reduce the risk of accidents that could cause downtime. Owning the AS-X6 in-house, rather than renting, leads to lower costs over time, immediate availability, and use across all shifts. For businesses aiming to streamline operations in warehouses, factories, or assembly lines, the AS-X6 is a smart and efficient investment.

Main Features and Advantages of SMITH AS-X6 Scissor Lift

The SMITH AS-X6 Scissor Lift is engineered for strength, safety, and precise operation. Its frame is made from high-strength steel, providing stability and reducing vibration while lifting. The proportional control system enables accurate positioning, which is essential for service and electrical installation tasks. The lift is equipped with automatic pothole protection system and a strobe warning light for increased stability and visibility in industrial settings. Safety features include an emergency descent system as well as anti-pinch hand guards to protect workers during vertical movement.

Optional upgrades such as AC power on the platform, wireless remote operation, platform work light, plus safety pedal switch let you customize the lift for specific industrial applications. Fold-down guardrails and an extendable platform make it easy to reach overhead areas. A maintenance safety arm as well as automatic braking system provide added safety and stability when the platform is raised. These technical features help boost productivity and support workplace safety compliance.

Operating Instructions for SMITH AS-X6 Scissor Lift

The SMITH AS-X6 Scissor Lift is simple to use and intended for trained industrial operators. Before starting, the user should inspect the lift, check that the batteries are charged, and confirm all safety features are working. The platform can be operated from the ground or from the platform control panel. To start, turn the key switch to platform mode and release both emergency stop buttons.

The proportional joystick allows for smooth, precise lifting and driving. When the platform is elevated, the drive speed is automatically reduced for safety. To extend the platform, release the extension pedal and manually slide the deck out up to 0.9 meters. If needed, the emergency descent can be activated from the ground control valve. The lift has alarms for overload, tilt, or system faults. After use, fully lower the platform, turn off the power, and chock the wheels before charging.

Applications for SMITH AS-X6 Scissor Lift

The SMITH AS-X6 Scissor Lift is built for indoor use on hard, level floors. It is well-suited for maintenance teams, facility supervisors, logistics centers, assembly operations, and electrical or HVAC installers. Its compact footprint allows it to work in warehouses, production areas, and retail maintenance spaces where floor space is tight. The zero-emission electric drive makes it a good fit for clean and quiet environments like food plants or labs.

It should be operated by certified personnel trained in aerial lift use and meets European workplace safety standards. Companies with frequent elevation needs—such as changing warehouse lights, installing signs, or maintaining production lines—can use the AS-X6 to reduce ladder use and manual lifting risks.

Design and Compatibility for SMITH AS-X6 Scissor Lift

The SMITH AS-X6 is built with a compact frame and a precisely engineered scissor lift system, delivering smooth vertical travel and balanced support. With a 1.84 m long as well as 0.76 m wide, it fits easily through standard industrial doorways. The platform measures 1.65 × 0.76 meters, offering ample space for two workers and their gear. Fold-down guardrails lower the overall height for easy storage or movement, and integrated forklift pockets make it simple to reposition the lift using a pallet jack or forklift.

This scissor lift works with a range of accessories, including AC outlets, work lights, and remote controls. The platform extension gives users extra reach for overhead tasks. Every part, from the hydraulic cylinders to the control switches, is engineered for heavy-duty industrial use and meets maintenance standards found in European facilities.

Performance and Features of SMITH AS-X6 Scissor lift

The SMITH AS-X6 Scissor Lift delivers reliable operation during industrial work cycles. It raises in 18 seconds and lowers in 28 seconds, providing steady movement and even load handling. Proportional controls allow for smooth, gradual lifting, while twin drive motors offer accurate steering. The lift can handle slopes up to 25%, making it suitable for moving over small ramps and level changes in warehouse environments.

Fitted with non-slip tires (323×100 mm) as well as dual braking systems, the lift maintains control during positioning. The onboard controller displays LED status indicators for battery charge and system faults, helping reduce downtime with instant feedback. The drive and hydraulic systems are designed for quiet operation and energy efficiency. With automatic fault detection as well as smart safety alarms, the AS-X6 performs dependably in tough industrial conditions.

Safety and Reliability of SMITH AS-X6 Scissor lift

Safety is a core focus of the SMITH AS-X6. The unit includes automatic pothole protection system, emergency stop controls, plus hydraulic line burst protection to guard against system failures. An overload warning system notifies operators if the weight limit is exceeded. The sturdy guardrails with a self-locking gate as well as anti-pinch hand protection keep users safe while elevated. Manual brake release and an emergency lowering feature allow for controlled descent if needed.

The platform is made from corrosion-resistant steel and finished with industrial-grade paint, ensuring it stands up to long-term use in dusty or damp environments. Electrical parts are sealed to block out moisture and debris. With routine checks and upkeep, the lift stays reliable and structurally sound throughout years of industrial service.

Adjustments and Service for SMITH AS-X6 Scissor lift

The SMITH AS-X6 Scissor Lift is designed for low maintenance, thanks to its electric drive and streamlined hydraulic setup. Operators should check the battery status, hydraulic fluid level, plus brake system before each use. Cleaning sensors and electrical contacts regularly helps prevent control issues. The built-in automatic fault detection assists technicians by pinpointing issues as they arise.

Routine service includes inspecting tire condition, checking fastener tightness, and lubricating the scissor arms. The safety support arm allows safe access under the platform during repairs. The lift’s layout makes it easy to swap out parts with standard tools, minimizing downtime and service expenses. Regular maintenance keeps the lift in line with CE and EN280 safety standards.

SMITH AS-X6 scissor lift

The SMITH AS-X6 Scissor Lift is a dependable and efficient solution for industrial lifting needs. Its sturdy build, advanced safety systems, and electric operation deliver consistent performance in professional settings. Businesses looking for a long-lasting, low-maintenance lift can obtain this model directly from our site.

To make a purchase, click ADD TO CART for fast order processing or choose GET OFFER for a tailored quote based on your project needs. The SMITH AS-X6 offers lasting value, less downtime, and meets European safety standards, making it a smart choice for today’s industrial operations.
