EXW · collection by the customer at our warehouse in Slovenia

SKU: 740270

Original price was: €2,800.Current price is: €2,199.

Export price without VAT • Goods collected for export are invoiced without VAT

Only 1 left in stock

🔒 Secure checkout • PCI-DSS compliant

    • Export price without VAT Goods collected for export are invoiced without VAT
    • CE-compliant Machines from ISO-certified manufacturers
    • Secure payment Card, PayPal or bank transfer
    • In stock EXW · collection by the customer at our warehouse in Slovenia
    • 12-month warranty Register it in the customer portal · service and spare parts from us
    • Returns and complaints No fee if the product is faulty or not as ordered

    10,000+ products sold across Europe 30+ years of team experience

    Diesel Generator 10kWDiesel Generator 10kW SDG10

    The Diesel Generator 10kW SDG10 is built to handle demanding power requirements in both industrial and commercial settings. Renowned for its strength, dependability, and efficiency, this generator is a trustworthy option when consistent electricity is needed. Whether you’re working in construction, field operations, or require a steady emergency backup, this generator is engineered to deliver reliable power even under the most challenging conditions.

    At a glance: 9.5 kW rated and 10 kW maximum power, three-phase 230 V / 400 V with 1 x 230 V (16 A), 1 x 230 V (32 A) and 1 x 400 V (32 A) sockets, electric start with remote control, an ATS connection for automatic start when the mains fails (with the ATS unit, sold separately), a single-cylinder air-cooled diesel engine with pre-heater and about 10 hours of operation on one 30-liter tank at rated load.

    This robust 10kW diesel generator features a 1-cylinder, 4-stroke, air-cooled diesel engine with a displacement of 734 cc and an engine speed of 3000 RPM. Designed for efficient diesel operation, it delivers high output while keeping fuel use low. The spacious 30-liter fuel tank supports long run times, and its efficient fuel consumption of ≤270 g/kWh reduces the need for frequent refueling. The generator is equipped with 230V and 400V power outlets, including 1x230V (16A), 1x230V (32A), and 1x400V (32A) European sockets, making it adaptable for different power requirements. An electric start system and remote control add convenience and flexibility for a variety of work environments.

    Key features include a self-excited, brushed synchronous alternator equipped with Automatic Voltage Regulator (AVR) for steady voltage output, protecting your equipment from power fluctuations. With a operates at a quiet 72 dB(A) measured from 7 meters away, the SDG10 operates more quietly than many generators in its class, making it ideal for noise-sensitive locations. The generator measures 1115 mm (L) x 650 mm (W) x 930 mm (H) and weighs 228 kg, offering a balance of portability and stability for tough job sites.



    Diesel Generator 10kWComprehensive Technical Details for Diesel Generator 10kW

    Built for durability and high performance, the SDG10 model is both compact and powerful. With dimensions of 1115 mm in length, 650 mm in width, and 930 mm in height, and a weight of 228 kg, this generator is easy to move yet stable in use. It operates at 50 Hz frequency with a rated voltage of 230 V / 400 V and 3-phase capability, making it suitable for a wide range of tools and equipment.

    The advanced 1103F engine model features a 1-cylinder, 4-stroke air-cooled design with direct fuel injection, delivering reliable performance even under changing loads. The generator’s self-excited, brushed synchronous alternator is equipped with an Automatic Voltage Regulator (AVR) to maintain consistent voltage and protect your devices from surges. With a noise output of 72 dB(A) at 7 meters, it is quieter than many generators in its class, making it a good fit for environments where noise reduction is important.



    Technical Data for Diesel Generator 10kW SDG10

    Specification Details
    Model SDG10
    Rated Output 9.5 kW
    Peak Output 10 kW
    Operating Frequency 50 Hz
    AC Output Voltage 230V
    Number of Phases Three-phase
    Starting System Electric Start
    DC Power Output 12V/8.3A
    Power Factor Rating 1
    Sound Level 72 dB(A) at 7m
    Power Outlets 1x230V (16A), 1x230V (32A), 1x400V (32A) European-style outlets
    Automatic Start Via the ATS connection, with the ATS unit (SKU 740300, sold separately)
    Product Highlights Digital display, ATS connection, Emergency shut-off, Remote operation (standard), Pre-heater, Hydraulic-magnetic circuit breaker
    Type of Alternator Self-excited, brushed synchronous alternator with AVR
    Engine Series 1103F
    Engine Specifications Single-cylinder, four-stroke, air-cooled diesel engine
    Number of Cylinders 1
    Engine Displacement 734 cc
    Engine RPM 3000 R.P.M
    Bore × Stroke 103 × 88 mm
    Fuel Type Diesel
    Fuel Tank Size 30 liters
    Fuel Usage ≤270 g/kWh
    Runtime on a Full Tank Approx. 10 hours at rated load
    Oil Reservoir 2.5 liters
    Combustion Method Direct Injection
    Dimensions (L×W×H) 1115 mm × 650 mm × 930 mm
    Weight 228 kg



    Diesel Generator 10kWKey Features of Diesel Generator 10kW

    The Diesel Generator SDG10 is built with advanced components that boost its performance and longevity:

    • Starter Motor: Provides dependable engine starting with an electric system, making it suitable for immediate power needs.
    • Flywheel Generator: Delivers steady power output, helping to keep the engine running smoothly and consistently.
    • Voltage Regulator: Maintains stable voltage to safeguard connected equipment, supporting reliable performance and minimizing stress on sensitive devices.
    • Battery and Cables: Enable electric start and ensure reliable connections, powering the generator’s electronics and supporting fast startups.
    • Oil Level Sensor: Helps protect the engine by warning users when oil levels are low.
    • Capacitor and Voltage Regulator Mount: These parts enhance power efficiency and keep the voltage regulator securely in place, helping the generator deliver optimal performance.



    • High Fuel Efficiency: With fuel use at ≤270 g/kWh, this generator extends run time and helps reduce fuel expenses.
    • Consistent Power Supply: Rated at 9.5 kW with a peak output of 10 kW, this generator supplies steady, reliable power for demanding tasks.
    • Built for Durability and Minimal Maintenance: Featuring a self-excited, brushed synchronous alternator equipped with Automatic Voltage Regulator (AVR), this generator maintains consistent voltage, helping protect connected equipment and lengthening the generator’s service life.
    • Quiet Performance: With a sound output of 72 dB(A) at a distance of 7 meters, this generator runs more quietly than many others, making it suitable for locations where noise matters.
    • Space-Saving and Easy to Move: Measuring 1115 mm (L) x 650 mm (W) x 930 mm (H) and weighing 228 kg, this generator is easy to move while providing the stability needed for tough environments.
    • Multiple Power Output Choices: Outfitted with three European-style plugs: 1 x 230V (16A), 1 x 230V (32A), 1 x 400V (32A), this generator can power a range of devices and tools for various uses.



    Diesel Generator 10kWMain features of Diesel Generator 10kW

    Uses and Performance

    Engineered for flexibility, the Diesel Generator 10kW SDG10 is ideal for a variety of uses, from powering equipment at construction sites to serving as a backup power source. Its robust build and high capacity make it a dependable option for field operations where consistent power is essential.

    Meets Quality and Safety Requirements

    The SDG10 is protected by several safety features. Its automatic voltage regulator shields against power surges, while a low oil pressure sensor helps protect the engine. Additional safety features, such as an emergency stop and ATS hole, make this generator a safe and user-friendly solution for industrial and commercial settings. The Diesel Generator 10kW SDG10 is engineered to fulfill the demanding power requirements of industrial and commercial users. Recognized for its reliability, fuel efficiency, and long-lasting construction, this generator is a strong and trustworthy choice where stable electricity is needed. It’s especially well-suited for construction, remote field work, and emergency backup, delivering steady power even in the toughest environments.



    Diesel Generator 10kWDiesel Generator 10kW

    The Diesel Generator 10kW is a premium power solution, crafted with high-grade materials and advanced engineering to ensure dependable performance in tough conditions. Here’s what distinguishes it as a leading generator:

    • Robust Engine Design: Features a 1-cylinder, 4-stroke, air-cooled diesel engine and a 734 cc displacement, this generator is engineered for long-lasting performance and efficiency. The engine design delivers steady power output and reduces wear, even during heavy-duty use, helping extend the generator’s operational life.
    • Efficient Fuel System: The SDG10 diesel generator uses a direct injection fuel system for effective fuel atomization and improved combustion. This setup achieves a efficient fuel usage of ≤270 g/kWh, supporting longer operation and cost savings. The 30-liter fuel tank allows for extended use without frequent refueling.
    • Enhanced Voltage Control: With a self-excited, brushed synchronous alternator and Automatic Voltage Regulator (AVR), this generator delivers steady voltage, helping safeguard connected devices from power fluctuations. This level of control is especially valuable where sensitive electronics or stable power are required.
    • Quiet Performance: The Diesel Generator 10kW produces just 72 dB(A) at 7 meters, thanks to advanced sound insulation and a design that reduces noise and vibration. This makes it a great fit for settings that need quiet operation while maintaining strong performance.
    • Heavy-Duty Build: Made with robust parts and high-strength materials, this generator is built to handle tough conditions. Its 1115 mm x 650 mm x 930 mm size and 228 kg weight provide stability, yet it remains portable enough for use in the field, making it a flexible power solution.
    • User-Friendly Features: The SDG10 model includes an electric start system and a remote control for added convenience. The digital display shows real-time information, making it easy to track performance, which improves both safety and ease of use.

    Each of these features adds to the overall quality of the Diesel Generator 10kW, making it a reliable and efficient choice for industrial, commercial, and emergency power needs. With its focus on durability, efficiency, and user convenience, the diesel generator 10kW SDG10 is a standout option for those who need a generator they can count on for years.



    Diesel Generator 10kW Customer Feedback

    Alexander S., Construction Site Manager
    “The Diesel Generator 10kW SDG10 has made a significant difference on our construction sites. Its rugged build and consistent power output let us operate several heavy-duty tools without interruption. The fuel efficiency is excellent, saving both time and money on refueling. I highly recommend it for anyone who needs dependable power in demanding situations!”

    Maria L., Emergency Operations Coordinator
    “When our facility experienced a major power outage, the Diesel Generator 10kW SDG10 worked perfectly. It kept our essential systems running smoothly for over 10 hours without any issues. The low noise level was especially helpful in our busy urban setting. This generator is essential for reliable emergency backup power!”

    Olivier D., Agricultural Business Owner
    “We rely on the Diesel Generator 10kW SDG10 for our field operations, and it has surpassed our expectations. Its portability and straightforward operation make it ideal for remote areas. The engine runs smoothly, and the digital display makes monitoring performance easy. It’s a smart investment for anyone who needs reliable and efficient power in agriculture!”



    Why Choose a 10kW Diesel Generator?

    Choosing a 10kW diesel generator like the SDG10 is a smart investment for those who need a reliable, high-performing power source. Here’s why:

    • Outstanding Fuel Efficiency: This quiet diesel generator features a direct injection system and an efficient 1-cylinder, 4-stroke engine, resulting in fuel consumption of ≤270 g/kWh. You’ll benefit from longer run times per tank and fewer refueling stops, making it a cost-effective solution for extended use.
    • Consistent Power Delivery: With a rated output of 9.5 kW and a peak output of 10 kW, this generator delivers steady power even during demanding conditions. Its durable engine design ensures reliable operation, making it suitable for essential uses like backup power and off-site work.
    • Built for Durability: The SDG10 is engineered with premium components, including a rugged flywheel generator and a dependable voltage regulator, so it stands up to frequent use and harsh environments, helping you minimize maintenance and replacement expenses.
    • Simple to Operate: Featuring an electric start, user-friendly control panel, and remote control capability, this generator is straightforward to use, even for those with limited technical background.



    Diesel Generator 10kWApplications for the 10kW Diesel Generator

    The Diesel Generator 10kW is versatile enough to handle many different applications:

    • Construction Sites: Delivers reliable power for equipment and tools, especially in locations without access to the electrical grid.
    • Pipeline Construction: Well-suited for demanding tasks like welding and cutting, supporting safety and efficiency in remote settings.
    • Emergency Standby Power: Maintains power during outages, ensuring that critical systems such as refrigeration and communications stay up and running.
    • Field Operations: An excellent choice for agriculture, research, and other fieldwork where dependable power is needed away from the grid.
    • Commercial Uses: Helps businesses stay productive by providing backup power during unexpected outages.



    Operating the 10kW Diesel Generator

    The Diesel Generator 10kW SDG10 is easy to operate, featuring an intuitive layout and straightforward controls. To get started, follow these basic steps:

    1. Setup: Position the generator on a stable, level surface in a space with good airflow.
    2. Starting: Use the electric start or remote control for quick and easy startup.
    3. Connecting Equipment: Plug your devices into the 1x230V (16A), 1x230V (32A), and 1x400V (32A) European outlets provided.
    4. Monitoring: Check the digital display for up-to-date information on generator performance.
    5. Shutting Down: After use, turn off all connected devices, allow the generator to cool, and then turn off the engine.



    Safe Operation Guidelines for the 10kW Diesel Generator

    Safety is a top priority when working with any diesel generator. The SDG10 model comes equipped with multiple integrated safety systems. Additionally, consider these recommended safety practices:

    • Ventilation: Always run the generator outdoors or in a well-ventilated area to avoid carbon monoxide buildup.
    • Keep Area Clear: Store flammable items away from the generator to help prevent fire hazards.
    • Proper Grounding: Always ground the generator securely to prevent electrical shock hazards.
    • Wear Protective Equipment: Use gloves, safety goggles, and other protective gear when handling fuel or performing maintenance.
    • Regular Maintenance: Frequently inspect oil levels, filters, and fuel lines to ensure the generator operates safely and efficiently.



    Diesel Generator 10kW Price

    The Diesel Generator 10kW SDG10 delivers outstanding value through its strong performance, long-lasting construction, and advanced features. Diesel generator pricing varies based on output and added options, but the SDG10 stands out for its competitive cost. Its excellent fuel economy, low maintenance needs, and extended service life help reduce overall expenses, making it a solid choice for industrial and commercial use.



    Diesel Generator 10kWDiesel Generator 10kW for Sale

    For those seeking a reliable and high-performing generator, the Diesel Generator 10kW SDG10 is a top pick. Its advanced technology, rugged build, and attractive pricing make it suitable for a wide range of uses, from industrial facilities to commercial operations. To learn more or to purchase the Diesel Generator 10kW, use the “Get Offer” button or reach out to our team. Choose this quiet diesel generator for dependable, efficient power in your business.

    Additional information

    Weight 228.0 kg
    Dimensions 1.115 × 0.65 × 0.93 m
    Parameter Specification
    Model

    SDG10

    Rated power

    9.5 kW

    Maximum power

    10 kW

    AC voltage

    230 V / 400 V

    Phase

    3 phase

    Frequency

    50 Hz

    Socket

    1 x 230 V (16 A), 1 x 230 V (32 A), 1 x 400 V (32 A) European sockets

    Automatic start

    Via the ATS connection, with the ATS unit (SKU 740300, sold separately)

    Starting system

    Electric start, remote control (standard)

    Engine type

    1-cylinder, 4-stroke, air-cooled diesel engine

    Number of cylinders

    1

    Runtime on a full tank

    Approx. 10 hours at rated load

    Fuel tank capacity

    30 liters

    Fuel consumption

    ≤270 g/kWh

    Noise level

    72 dB(A) at 7m

    Features

    Digital display, ATS connection, emergency stop, remote control, pre-heater, hydraulic-magnetic circuit breaker

    Weight

    228 kg

    Dimensions (L × W × H)

    1115 mm × 650 mm × 930 mm

    Engine model

    1103F

    Displacement

    734 cc

    Engine speed

    3000 R.P.M

    Bore × stroke

    103 × 88 mm

    Fuel type

    Diesel

    Combustion system

    Direct Injection

    Oil capacity

    2.5 liters

    Oil change

    First after 20 hours, then every 100 hours

    Alternator type

    Self-excited, Brushed Synchronous Alternator with AVR

    DC output

    12V/8.3A

    Power factor

    1

    What kind of engine is used in the Diesel Generator 10kW SDG10?

    It uses a reliable single-cylinder (1-cylinder), 4-stroke, air-cooled diesel engine (model 1103F, 734 cc) with a pre-heater, designed for industrial use.

    Can the generator start automatically when the power fails?

    Yes, with the ATS unit (SKU 740300, sold separately). It is connected to the ATS connection on the generator's control panel, starts the generator 2-6 seconds after a mains failure, switches the load to the generator after 5 seconds and switches back and stops the generator when the mains returns. It must be installed by a qualified electrician.

    How efficient is this generator with fuel?

    The generator is designed for low fuel consumption, using ≤270 g/kWh, which helps maximize fuel efficiency during use.

    What is the runtime on a full tank of fuel?

    About 10 hours at rated load on the 30-liter tank, longer at partial load. The generator does not have to be switched off after 10 hours: stop the engine, refuel and start it again. Change the oil after the first 20 hours and then every 100 hours of operation.

    Can this generator supply both 230V and 400V power?

    Yes, it is a three-phase generator with 230 V and 400 V outputs: 1 x 230 V (16 A), 1 x 230 V (32 A) and 1 x 400 V (32 A) European sockets.

    What is the noise level of the generator while running?

    It runs at a quiet 72 dB(A) measured from 7 meters away, helping to keep noise levels low at your site.

    Is there an electric start option for this generator?

    Yes, it comes with an electric start and a remote control for added convenience and fast startup.

    What alternator type does the generator have?

    It is equipped with a self-excited, brushed synchronous alternator and features automatic voltage regulation (AVR) to ensure steady power output.

    Is the Diesel Generator 10kW SDG10 built to withstand tough environments?

    Yes, its sturdy and compact build, with a weight of 228 kg, is engineered for dependable use on construction sites and in the field.

    What safety systems are featured on this generator?

    It has an emergency stop, a low oil alarm, a hydraulic-magnetic circuit breaker and AVR for voltage stabilization.

    Summary

    • High-quality 10kW diesel generator for industrial and commercial use
    • 9.5 kW rated / 10 kW maximum power, three-phase 230 V / 400 V, 50 Hz
    • Sockets: 1 x 230 V (16 A), 1 x 230 V (32 A), 1 x 400 V (32 A)
    • ATS connection: starts automatically when the mains fails, with the ATS unit (sold separately)
    • Electric start with remote control (standard) for easy use
    • Reliable 1-cylinder, 4-stroke, air-cooled diesel engine with pre-heater
    • About 10 hours on one 30-liter tank at rated load
    • Low fuel consumption rate of ≤270 g/kWh, direct injection
    • Quiet operation at 72 dB(A) at 7 meters
    • Self-excited, brushed synchronous alternator with AVR regulation, hydraulic-magnetic circuit breaker
    • Compact and durable design, weighing 228 kg
    • Ideal for construction, field operations, and backup power
    • EXW pickup – one-year warranty

    Brand

    SMITH

    Compliance

    EU Warranty

    Product Documents

    Technical Datasheet (PDF)

    Sign in to access the full technical datasheet.

    User Manual (PDF)

    Accessible for registered customers. Version control and tracking included.

    Product Certificates (PDF)

    Sign in to access the complete datasheet and CE certificate.

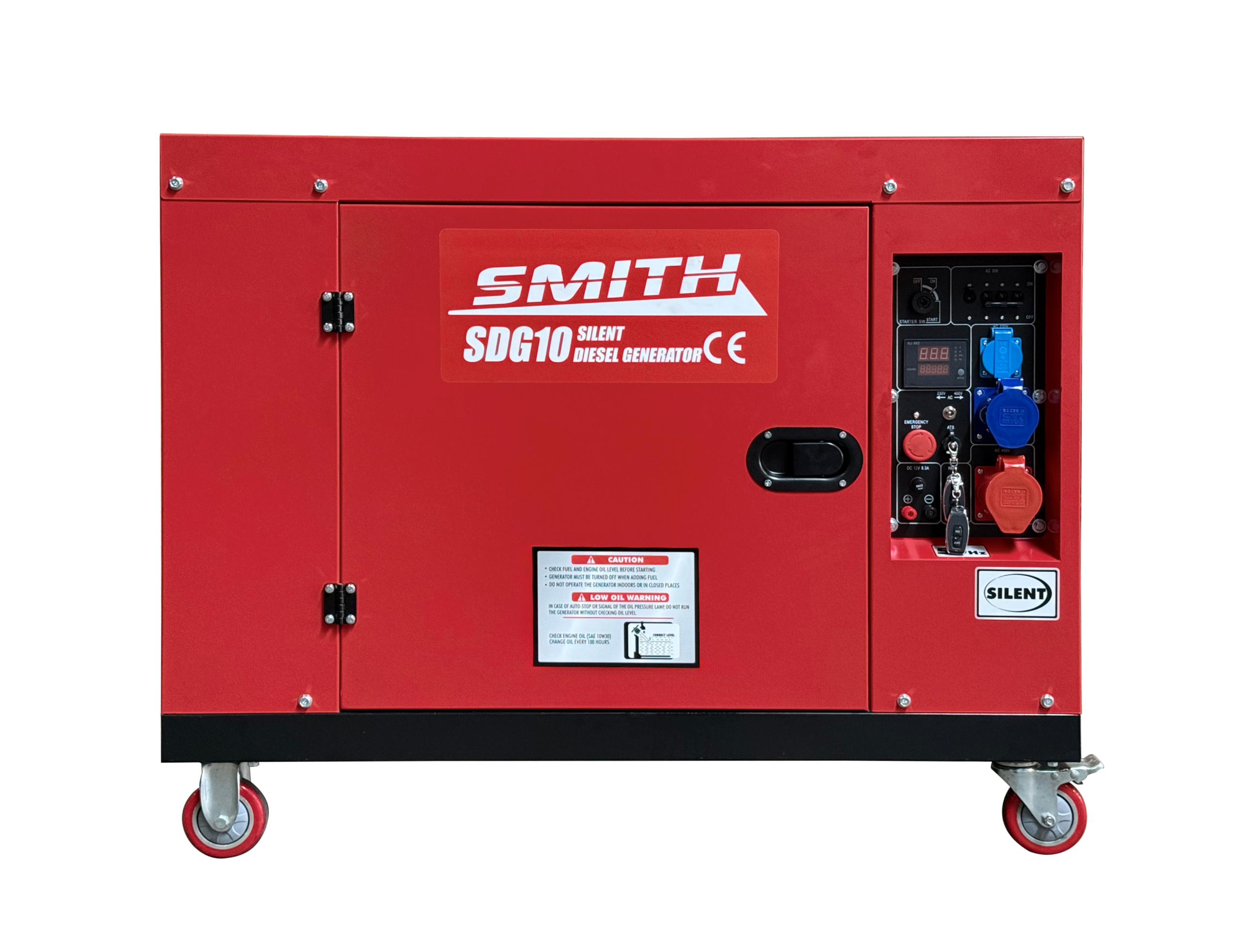

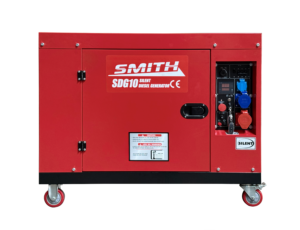

    10 kW diesel generator SMITH SDG10, front view with control panel and sockets

    10 kW Diesel Generator SDG10
